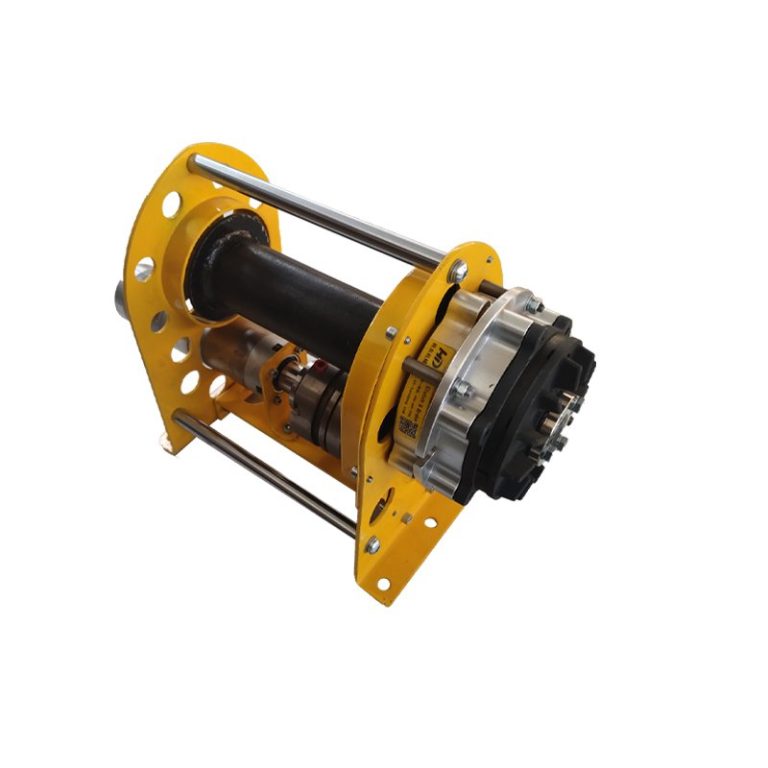

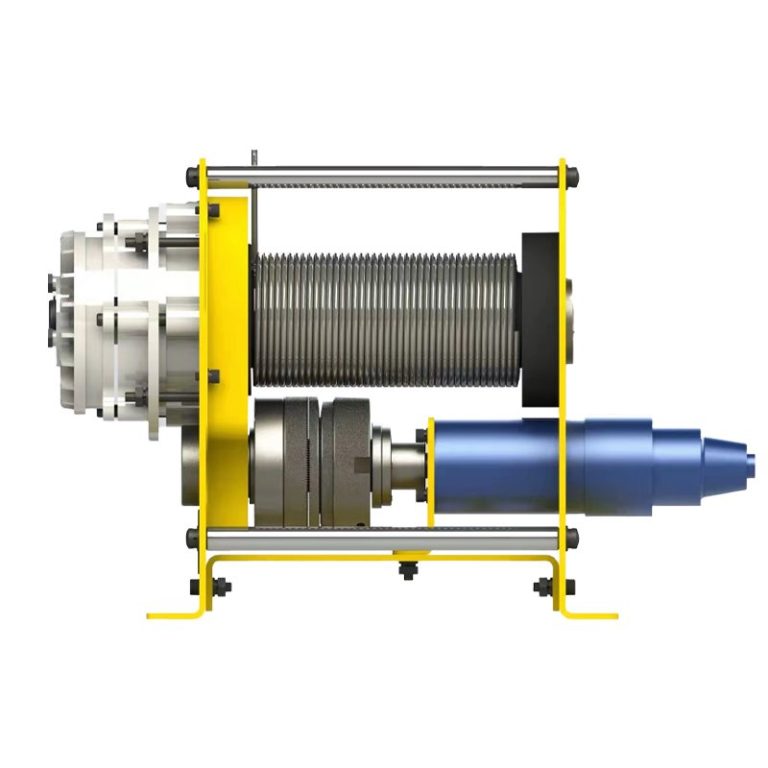

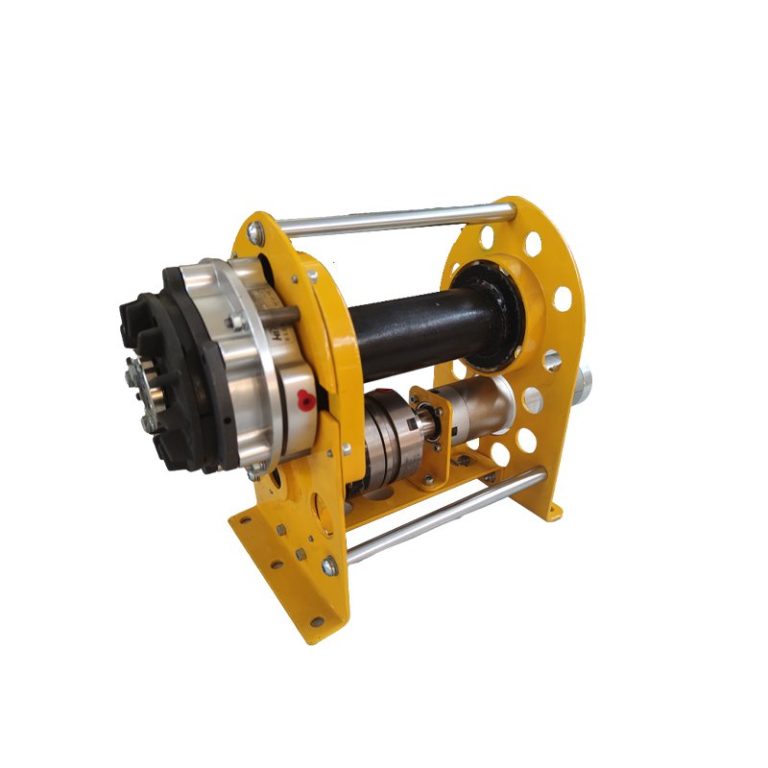

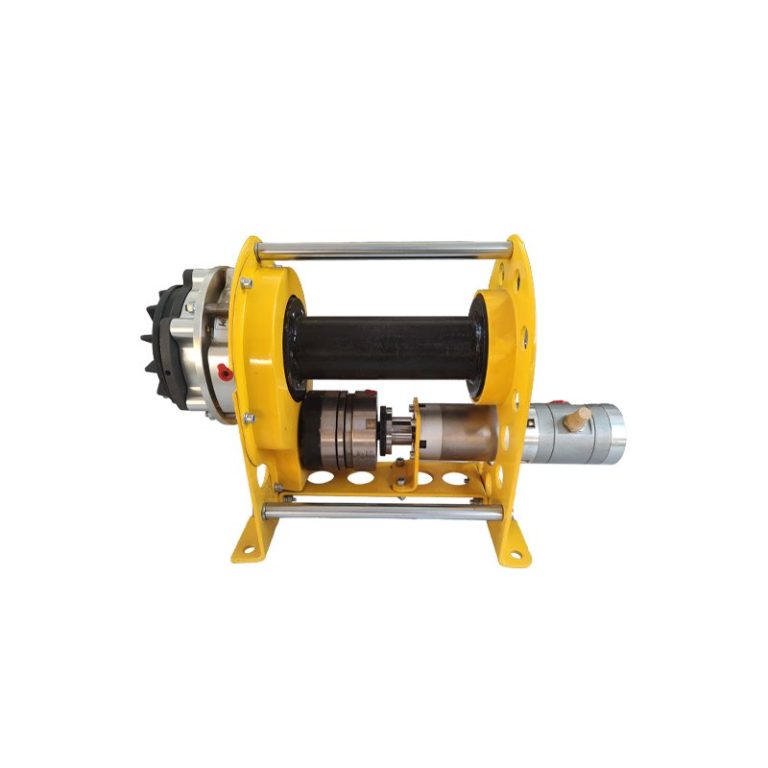

Pneumatic Winch

The pneumatic winch is a type of winch powered by compressed air, suitable for explosion-proof marine use or specialized applications.

Compressed Air Power:Uses compressed air delivered through air pipes to drive the pneumatic motor, enabling lifting, lowering, and other winch functions.
Compact and Lightweight:Features a small size, light weight, simple operation, and high safety and reliability. It has strong anti-corrosion properties to effectively protect internal components from corrosion.
Wide Application: Widely used in mining, ports, ships, aerospace, and other fields. It is ideal for lifting, lowering, levelling, and transferring operations, making it an efficient, energy-saving, and safe type of winch.

Chat Now

Pneumatic Winch

The pneumatic winch is a type of winch powered by compressed air, suitable for explosion-proof marine use or specialized applications.

Compressed Air Power:Uses compressed air delivered through air pipes to drive the pneumatic motor, enabling lifting, lowering, and other winch functions.
Compact and Lightweight:Features a small size, light weight, simple operation, and high safety and reliability. It has strong anti-corrosion properties to effectively protect internal components from corrosion.
Wide Application: Widely used in mining, ports, ships, aerospace, and other fields. It is ideal for lifting, lowering, levelling, and transferring operations, making it an efficient, energy-saving, and safe type of winch.

Chat Now

Product Details

Model：200 KG

Motor power：0.4KW

Rated intake pressure：0.8Mpa

Air motor Maximum power Output torque：95N.m

Maximum power speed of the air motor：40rp/min

Lifting weight：100kg

Rope Diameter：4mm

Rope speed of the winch: 3m/

min

Self-weight：25kg

Reel capacity：25m

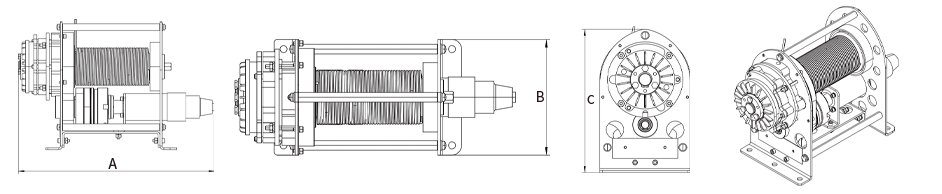

Model：200 KG

A（Length）：437mm

B（Width）：180mm

C（Height）：285mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
