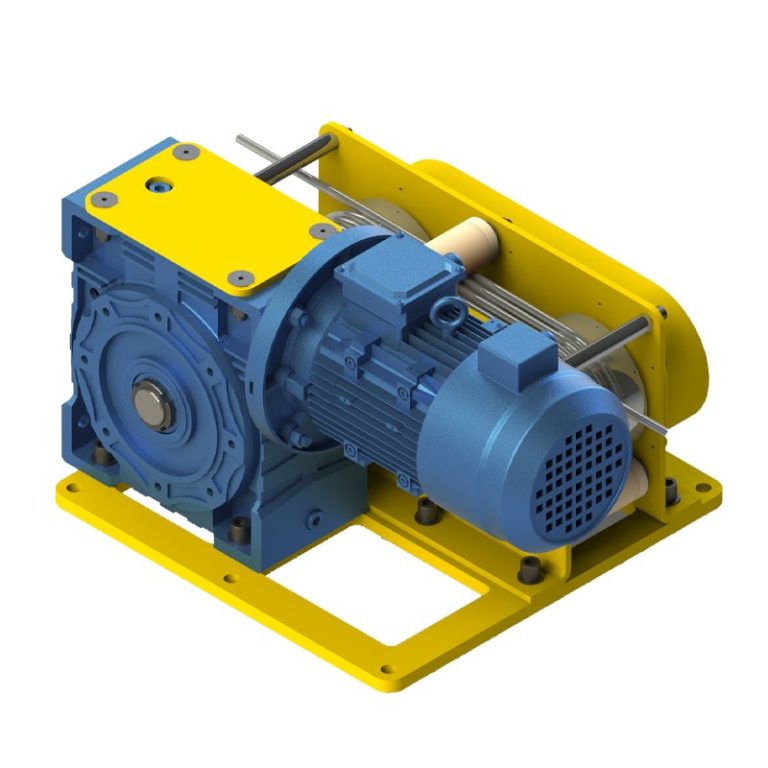

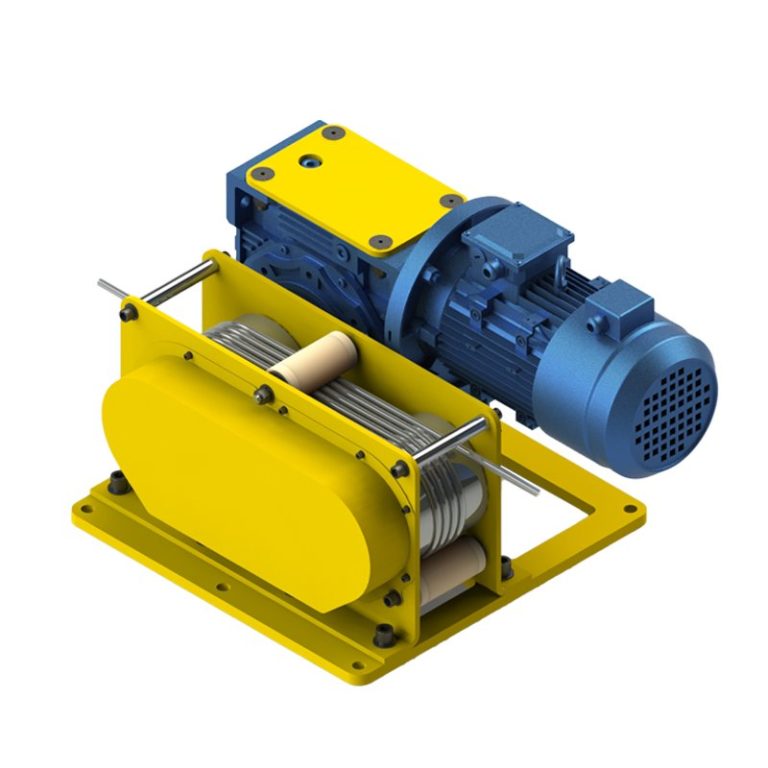

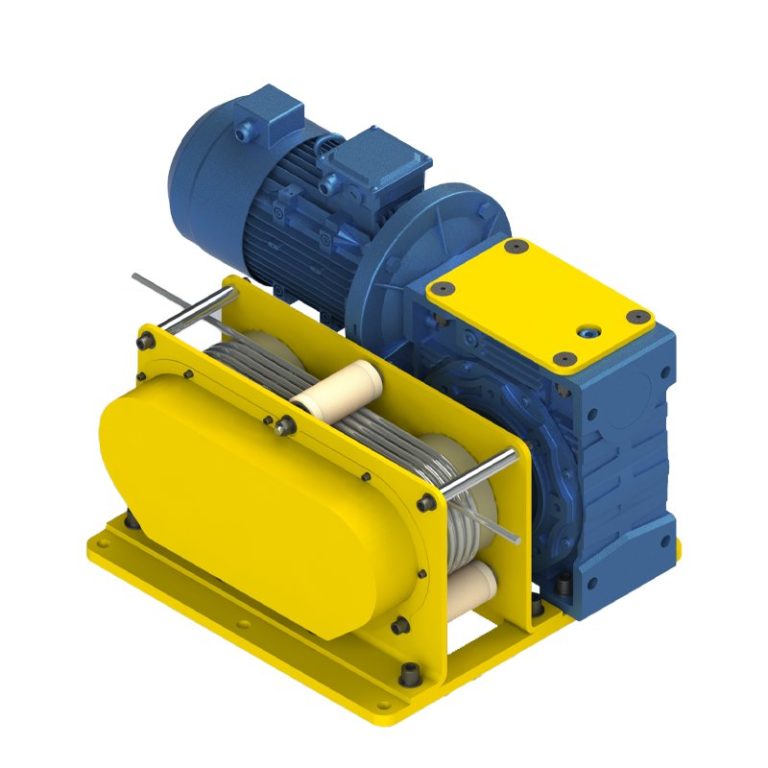

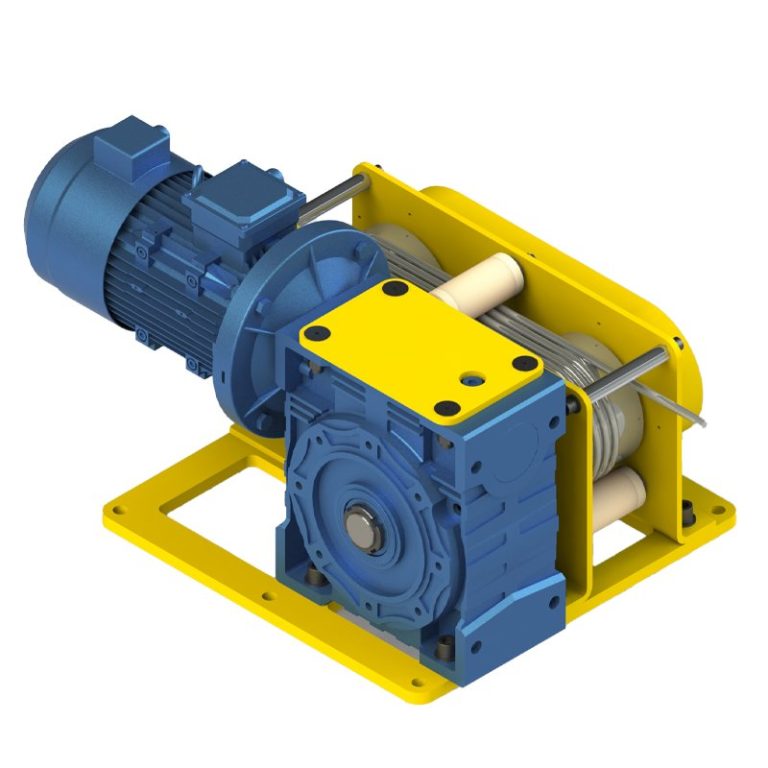

Friction Winch

Turbine reducer-driven friction winches are energy-efficient products used in the field of equipment support.

  1. Driven by a turbine gear reducer, it uses friction transmission to achieve steel wire rope traction, featuring a compact size, low noise, and high cost-effectiveness.
  2. The entire machine adopts a modular design, offering easy disassembly, maintenance, and upkeep, which facilitates user operations during equipment repair and maintenance.
  3. It has the features of high load capacity, large traction, safety and reliability, meeting the needs of different users.

Friction Winch

Turbine reducer-driven friction winches are energy-efficient products used in the field of equipment support.

  1. Driven by a turbine gear reducer, it uses friction transmission to achieve steel wire rope traction, featuring a compact size, low noise, and high cost-effectiveness.
  2. The entire machine adopts a modular design, offering easy disassembly, maintenance, and upkeep, which facilitates user operations during equipment repair and maintenance.
  3. It has the features of high load capacity, large traction, safety and reliability, meeting the needs of different users.

Product Details

Model Motor power Reduction gear ratio Reducer output speed Motor reducer rated output torque Rope out speed Self-weight Rope Diameter
1000KG 2.2kw 100:1 14rp/min 869N.m 6.8m/min 120kg 10mm

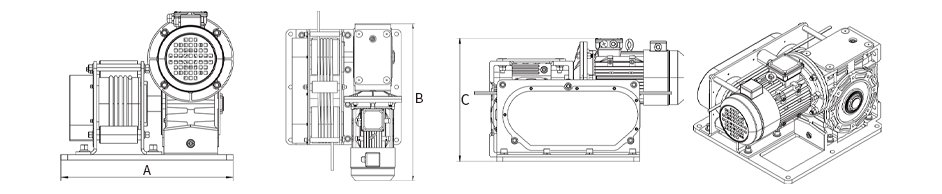

Model A(Length) B(Width) C(Height)
1000KG 500mm 683mm 433mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
