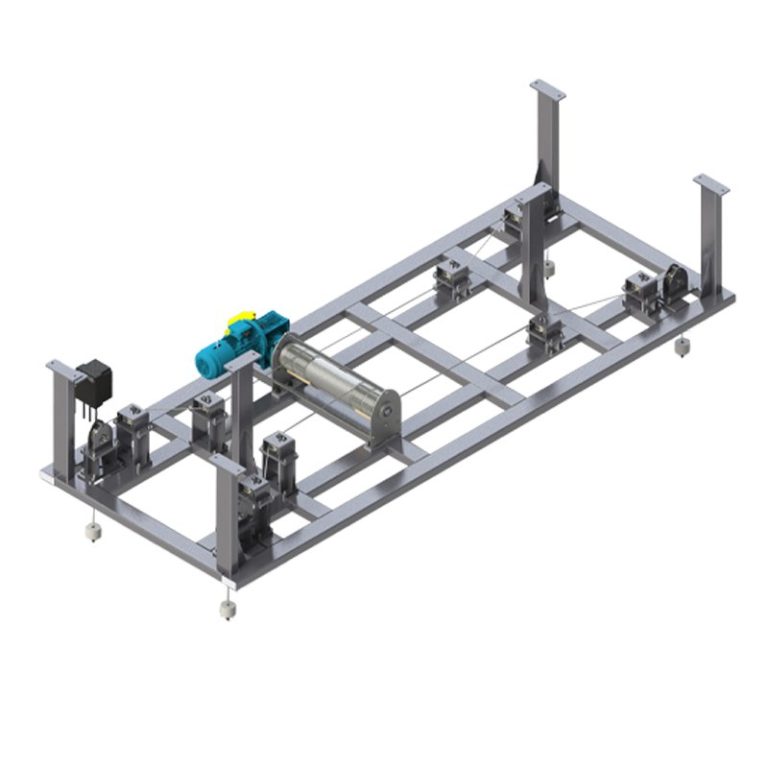

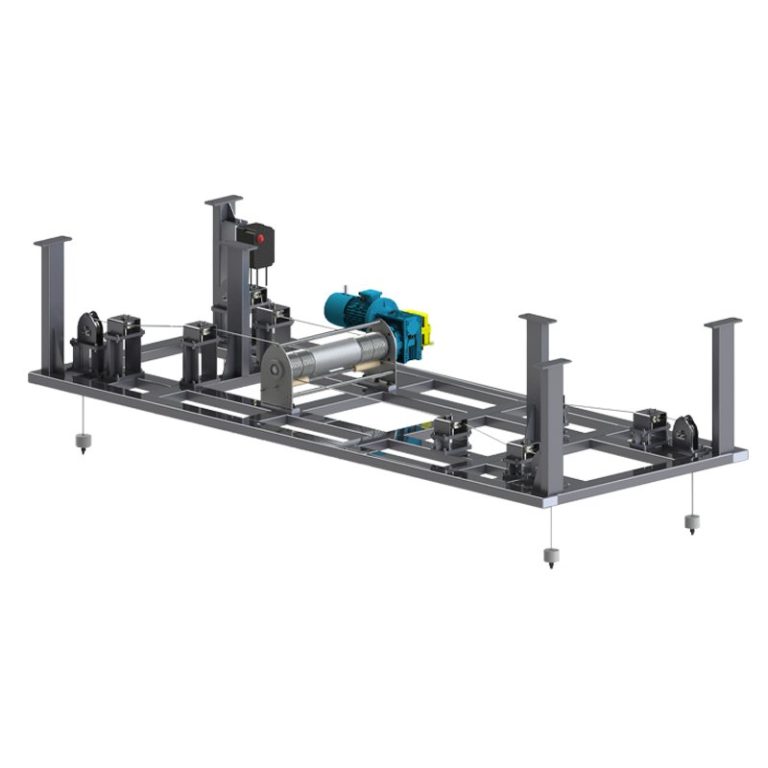

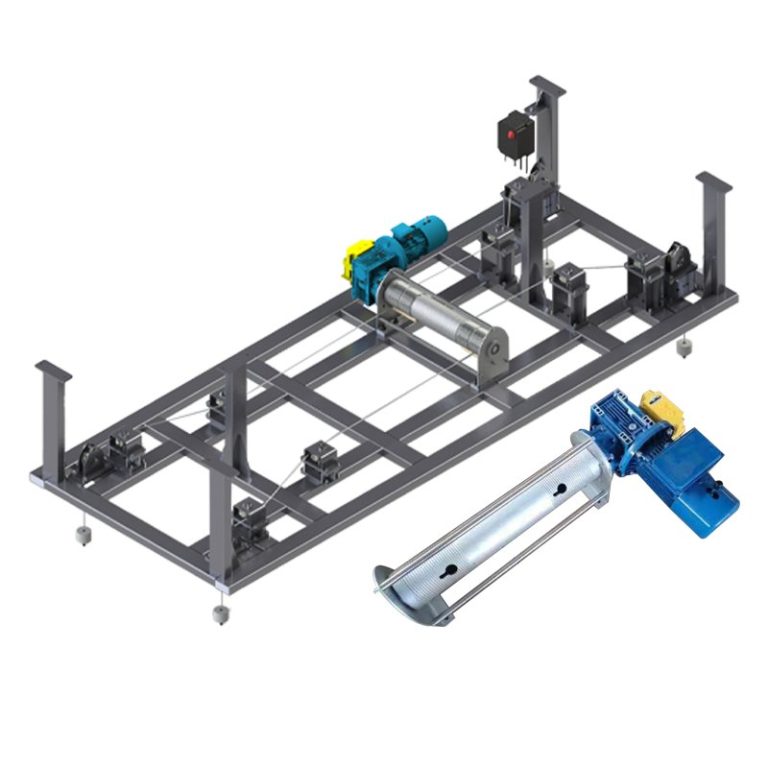

Four-rope Synchronous Lifting Winch

The four-rope synchronous lifting winch is a device driven by a single reduction motor, which changes the direction of the outgoing rope by means of a pulley to achieve the function of lifting and lowering the four ropes in complete synchronization. The product features by low running noise and is suitable for lifting table tops or large components.

Single reduction motor drive: Driven by a single geared motor, it can provide stable power output and ensure smooth lifting and lowering process.
Four-rope synchronous design: The four-rope synchronous design can ensure that the strength of each rope is balanced during the lifting process, which improves the stability and safety of the lifting.
Low operating noise: the product adopts high-quality materials and precise manufacturing process, which can reduce the noise during operation and provide a more comfortable working environment.

Chat Now

Four-rope Synchronous Lifting Winch

Single reduction motor drive: Driven by a single geared motor, it can provide stable power output and ensure smooth lifting and lowering process.
Four-rope synchronous design: The four-rope synchronous design can ensure that the strength of each rope is balanced during the lifting process, which improves the stability and safety of the lifting.
Low operating noise: the product adopts high-quality materials and precise manufacturing process, which can reduce the noise during operation and provide a more comfortable working environment.

Chat Now

Product Details

Model：300 KG	Motor power：1.5 KW	Rope out speed：5m/min	Lifting height：5m
Lifting speed：2m/min

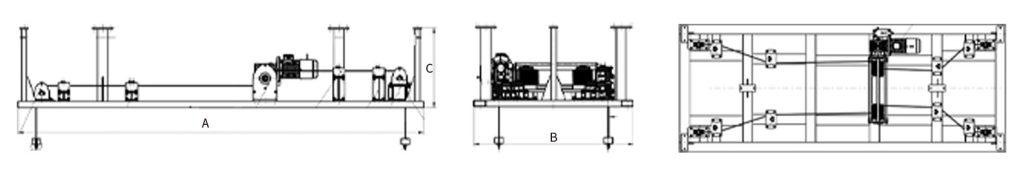

Model：300 KG

A（Length）：3300mm

B（Width）：1300mm

C（Height）：650mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
